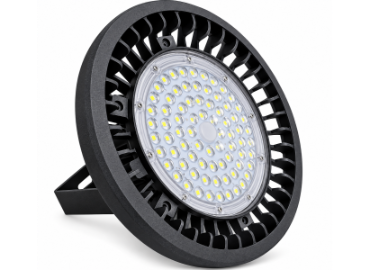

IP67-rated LED high bay light with non-yellowing lens optics, 50W to 300W, built for large industrial floors, stadiums and outdoor high-mount applications.
The Lens High Bay Light uses a non-yellowing optical lens instead of a glass or diffuser cover, giving it a tighter, more controlled beam that holds its clarity over years of continuous use. Rated IP67 — a step above standard high bay fixtures — it handles outdoor exposure as well as indoor industrial ceilings, making it suited to large factory floors, stadiums, commercial buildings and outdoor sites like billboards where a weatherproof, high-output fixture is needed.
| Model No. | Wattage | Casting Weight | PCB Size | Casting Size | Driver Area (L x W x D) | Product Weight |
|---|---|---|---|---|---|---|
| DL-169 | 50-70W | 0.426 KG | 133 x 133mm | 185 x 110mm | 110 x 70 x 40mm | 0.910 KG |
| DL-170 | 80-100W | 0.800 KG | 175 x 175mm | 230 x 115mm | 150 x 90 x 45mm | 1.550 KG |
| DL-171 | 150-200W | 2.010 KG | 250 x 250mm | 330 x 130mm | 220 x 110 x 45mm | 3.200 KG |
| DL-172 | 250-300W | 2.700 KG | 250 x 250mm | 370 x 140mm | 225 x 150 x 58mm | 4.735 KG |
Pick by floor area and mounting height together — the DL-169 (50-70W) suits smaller bays or supplementary lighting, while the DL-172 (250-300W) is built for large warehouse floors, stadium-scale coverage or outdoor sites needing a single high-output fixture rather than several smaller ones. The lens optic keeps the beam consistent at range, which matters more here than in a smaller indoor room.
Aluminium die-cast housing with a separate driver compartment, a non-yellowing lens cover, and IP67 sealing against dust and water — rated for outdoor use as well as indoor industrial ceilings. Shock-resistant construction with efficient heat dissipation for continuous operation.
Backed by Rayna's standard manufacturing quality control, up to 60 months warranty (Economy 2yr / Premium 3yr / up to 5yr), with BIS-approved LED drivers and LM80-certified LEDs throughout the range.
Swipe the table sideways to see all columns.
Related Products
High-output round LED high bay light with a toughened glass diffuser, built for tall-ceiling industrial, warehouse and factory lighting.

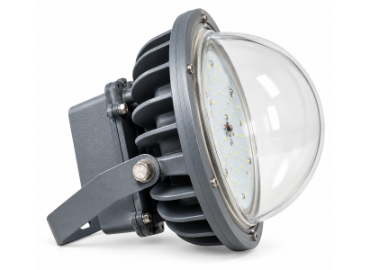

IP66-rated LED high bay light with a sealed glass dome, built for damp, dusty or wash-down industrial areas where a standard high bay fixture won't hold up.

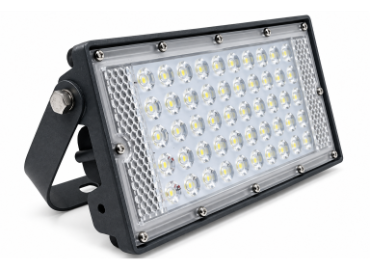

Lens Flood Light | 50W & 100W | IP66 | Individual Lens Optics | Up to 60 Months Warranty
