Track Light Channel & Jointer | 1M & 2M Lengths | 2-Line & 3-Line (Earth) | S/L/T/X Jointers
The track channel and jointer range completes Rayna's Track Light system, letting you run our Cylinder and Arm fixtures along a continuous, wired rail. Channels come in two lengths and two wiring configurations; jointers let you extend, corner, branch, or cross a run without cutting the channel.
| Model | Length | Line |
|---|---|---|
| SBE-496 | 1 Mtr | 2 (Live + Neutral) |
| SBE-497 | 2 Mtr | 2 (Live + Neutral) |
| SBE-498 | 1 Mtr | 3 (Live + Neutral + Earth) |
| SBE-499 | 2 Mtr | 3 (Live + Neutral + Earth) |

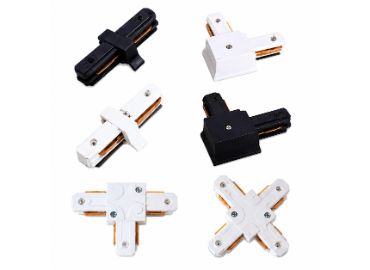

| Type | Line | Use |
|---|---|---|
| S — Straight | 2 | Extends a straight run of track |
| L | 2 | 90° corner join |
| T | 2 | Three-way branch join |
| X | 2 | Four-way cross join |
Use the 2-Line channel (SBE-496 / SBE-497) for standard installations with Live and Neutral only. Use the 3-Line channel (SBE-498 / SBE-499) where the installation requires a dedicated Earth line for grounding. Jointers are available for the 2-Line channel only — pick Straight to extend a run, L for a 90° corner, T for a three-way branch, or X for a four-way cross, depending on your track layout.
Available in Black and White finishes to match Rayna's Cylinder and Arm track fixtures. Aluminium construction for durable, long-term installation.
Up to 60 Months Warranty. Compatible with all Rayna Track Light fixtures (Cylinder Track, Cylinder Surface Track, Arm Track, Arm Surface Track).
Swipe the table sideways to see all columns.
Related Products

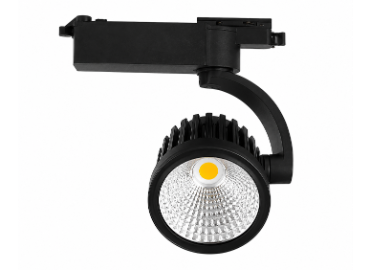

Arm Surface Track Light | 10W to 50W | Wall/Ceiling Mount | Adjustable Arm Head | IP20 | Up to 60 Months Warranty
Arm Track Light | 10W to 50W | Rail-Mount | Adjustable Arm Head | IP20 | Up to 60 Months Warranty

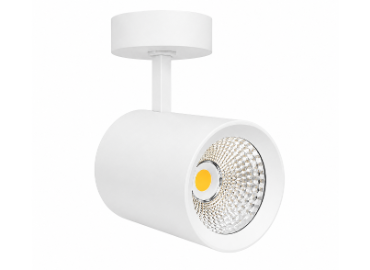

Cylinder Surface Track Light | 10W to 50W | Wall/Ceiling Mount | 38° Beam | IP20 | Up to 60 Months Warranty
