Rayna Make Glass Panel Smart Switch | Premium Tempered Glass | 2/4/6/8/12 Module Configurations | WiFi, Bluetooth Mesh & Zigbee | up to 5 Years Warranty | Made in India
The Glass Panel Smart Switch is a full-glass touch switch line built for modern interiors, combining premium tempered glass, capacitive touch and multi-protocol connectivity in one panel. Every panel is built to project requirements — glass finish, icon layout, illumination colour and module configuration are all configurable rather than fixed.
Available in 2, 4, 6, 8 and 12 module configurations. Every combination includes 1 × 20A switch and 1 × Two-Way switch within the total switch count.
| Module | Combination |
|---|---|
| 02 Module | 4 Switch |
| 04 Module | 8 Switch / 5 Switch + 1 Fan / 4 Switch + 1 Plug (6A/16A) |
| 06 Module | 12 Switch / 9 Switch + 1 Fan / 8 Switch + 1 Plug / 5 Switch + 1 Fan + 1 Plug / 4 Switch + 2 Plugs |
| 08 Module | 12 Switch / 12 Switch + 1 Plug / 9 Switch + 1 Fan + 1 Plug / 8 Switch + 2 Plugs / 5 Switch + 1 Fan + 2 Plugs |
| Spec | Detail |
|---|---|
| Operating Voltage | 90-300V AC, 50Hz |
| Standby Power | ≤2.5W |
| Relay Rating | 10A minimum, up to 30A as required |
| Connectivity | WiFi 2.4GHz, Bluetooth Mesh, Zigbee |
| App | Smart Life / Tuya |
| Touch Technology | Capacitive, controller-based touch — works with wet hands and gloves |
| Glass Thickness | 1.7mm to 3mm |
| Surge Protection | MOV-based AC input protection |
Start with the module count your room's switch points need, then pick a combination that matches — every option already builds in one 20A switch and one Two-Way switch, so you're really choosing how the remaining points split between switches, fan control and plug points (6A/16A). Larger panels (06/08 module) suit master bedrooms or living rooms with multiple loads on one wall; the 02/04 module panels suit smaller rooms or single-wall setups.
Choose glossy or matt finish, in Black, White, Rose Gold or Metallic Grey — with custom colours available for bespoke projects. Icon layout can be a standard set (AC, Washing Machine, Fan, Light, Two-Way Switch, Chandelier, and more) or fully customised to the project's requirements. RGB illumination is configurable per panel, with a night-indicator-off option.
Scenes, automation, timers, child lock, RGB indicator control, power memory, multi-user sharing and remote control over the internet — all managed through the Smart Life app, with voice control via Alexa, Google Assistant and Siri Shortcuts.
2-layer PCB with 2oz copper in the relay section for higher current handling, premium tempered glass (1.7mm-3mm) with UV-protected, scratch-resistant colour finish. Backed by up to 5 years warranty. Made in India.
Swipe the table sideways to see all columns.
Related Products
Rayna Make Modular Smart Switch | WiFi Enabled (Doorbell Module Non-WiFi) | Fits Standard Modular Switch Plates | up to 24 Months Warranty | Smart Life & Tuya App Compatible
Rayna Make Top Opening Clean Room Light | up to 60 Months Warranty | Available in 24W (1x1) and 45W (2x2) | Colour: 3000K, 4000K, 5000K, 6000K

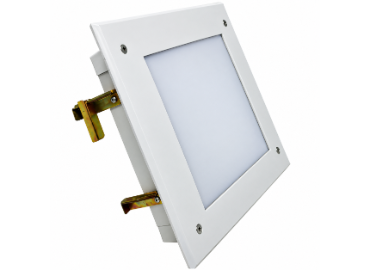

Rayna Make Bottom Opening Clean Room Light | up to 60 Months Warranty | Available in 24W (1x1) and 45W (2x2) | Colour: 3000K, 4000K, 5000K, 6000K
